- UTA-R2
- 3GPP Rel-14 LTE Cat.1bis
- VoLTE
- Wi-Fi Scan
- 16.0 x 16.0 x 2.0mm

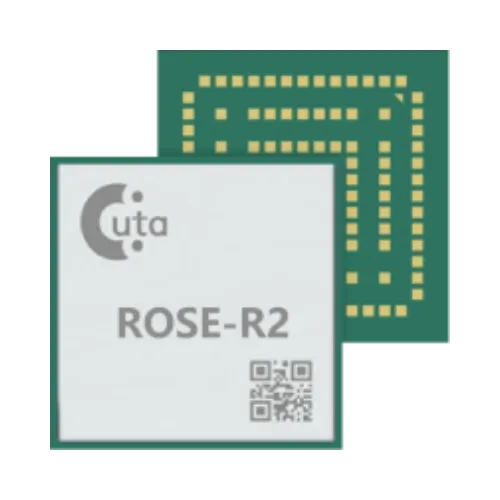

| Product Name | ROSE-R2 | ||||
|---|---|---|---|---|---|
| Variant | ROSE-R2401-00 | ROSE-R2401-10 | ROSE-R2801-00 | ROSE-R2801-10 | |
| Region | North American | EMEA/APAC/Brazil | |||
| Platform | UTA-R2 | ||||
| LTE | LTE Category | LTE Cat.1bis (10Mbps/DL, 5Mbps/UL) | |||
| LTE Band | 2,4,5,12,13,14,17,66,71 | 1,3,5,7,8,20,28 | |||
| Wi-Fi Scan | Support | ||||
| Internal GNSS Receiver | Not Support | ||||
| USB 2.0 | 1 | 1 | 1 | 1 | |
| UART | 2 | 2 | 2 | 2 | |
| I2C | 1 | 1 | 1 | 1 | |
| ADC | 1 | 1 | 1 | 1 | |
| SIM | 1 | 1 | 1 | 1 | |
| GPIO | 10 | 5 | 10 | 5 | |
| I2S | Not Support | Support | Not Support | Support | |
| VoLTE | Not Support | Support | Not Support | Support | |
| PSM | Support | ||||
| cDRX | Support | ||||
| eDRX | Support | ||||
| SMS | Support | ||||
| MQTT | Support | ||||
| SNTP | Support | ||||
| FOTA | Support | ||||
| Dual Stack IPV4/IPv6 | Support | ||||
| Embedded TCP/IP, UDP/IP | Support | ||||
| Embedded HTTP/HTTPS | Support | ||||
| Embedded FTP/FTPS | Support | ||||
| Embedded TLS/DTLS | Support | ||||
| Operating Temperature | -40°C ~ 85°C | ||||
| Dimensions | 16.0*16.0*2.0mm | ||||
| Certification | Carrier | TBD | TBD | ||
| Regulatory | PTCRB, GCF, FCC, ISED | RED, NCC, RCM, Anatel | |||
| Product Stage | EV | EV | EV | EV | |
